PMC Type 5078 SCH-M Remote Control Head

The SCH-M is a compact control head suitable for a wide range of marine and industrial applications. Including main propulsion, bow / stern thrusters, and winches.



Some of the SCH-M features:

    ~ Maximum performance without comprimise

    ~ Compact design simplifies armrest installation

    ~ Redundent control lever position sensing

    ~ Watertight above the console

Options

    ~ Single or Twin levers

    ~ Electric Shaft (lever line up)

    ~ Various lever styles and lengths

    ~ Various 'L' and/or 'T' handle grips

    ~ Lever coupling mechanism

    ~ Illuminated scales

    ~ Engraving dimples and dashes at detents and/or end of travel

    ~ Engraving dimples and dashes painted or unpainted

    ~ Single lever, Center Handle version

    ~ Top mount adapter plate (bottom mounting is standard)

    ~ Waterproof lower housing

    ~ 140 degree lever travel standard (consult factory for alternate lever travel)

    ~ Up to 11 detents.

Dimensions above Console (without gasket)

    Width: 112mm
    Length: 108mm
    Height: 98mm









SCH-M Small Control Head - Machined

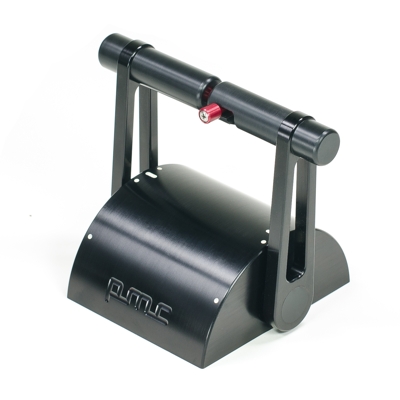

Shown with lever coupling mechanism & painted dimples and dashes

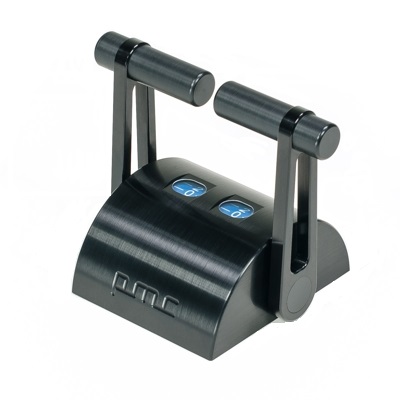

SCH-M with 'L' handles & illuminated scale windows

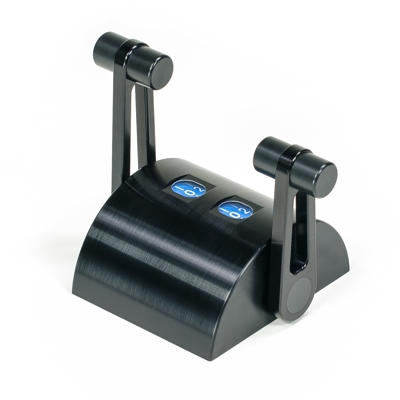

SCH-M with illuminated scale windows & different length 'T' handles

(Scales configured for bow / stern thrusters)

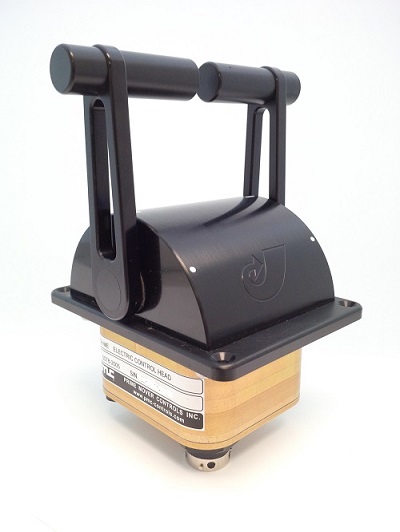

SCH-M with top mount plate and waterproof enclosure, painted dimples & customers logo

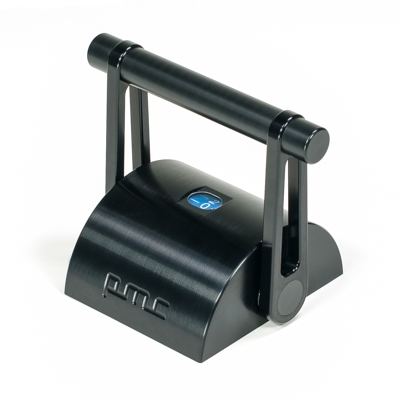

SCH-M with single lever center handle & illuminated scale window



5078-1001-tr

SCH-M / SCH-C product bulletin PDF

8014-4-01-tr

See also the SCH-C product page

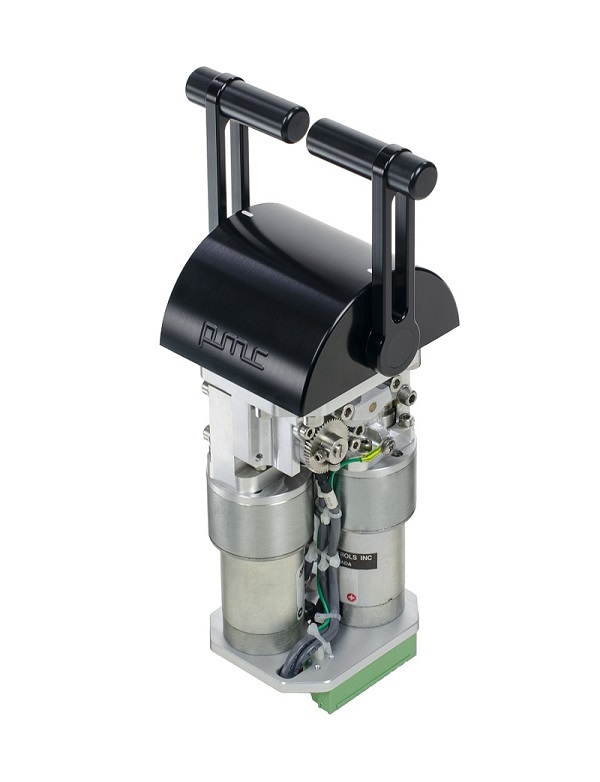

SCH-ES - Electric Shaft (lever line up)
