Great Lakes Vessels with D-MaC Systems

Vessels on the Great Lakes with D-MaC Systems

Reliability is decisive for every vessel's readiness. PMC's Digital Marine Control system, D-MaC fulfills that requirement. That is why there are more D-MaC's on the Great Lakes than any other system. The D-MaC is a powerful, easy to use micro-processor based control system. For maximum reliability D-MaC utilizes a touch screen display panel with non-volatile memory and no hard drives.

Stewart J Cort Canadian Century MV Canadian Venture SB Roman* Canadian Miner HM Griffith CSL Niagara CSL Nanticoke CSL Laurentian Louis R Desmarais Roger Blough	Algosteel Algomarine Algocape Gordon C Leitch Frontenac Tadoussac Cuyahoga Edwin H Gott Edgar B Speer* Canadian Olympic** Canadian Progress
* Vessels equipped with PMC's Integrated Machinery, Alarm and Control System. (IMACS) * Vessels equipped with PMC's Distributed Control and Monitoring System (Omni Chief)
Vessels on the Great Lakes with MPC-CP Systems MS Chi-Cheemaun MV Algoville


Stewart J Cort

LOA.:	304.8 m
Engines:	4 x EMD 20-645E7
Power:	4 x 2274 kW @ 720 rpm (Shaft Generator Mode) 4 x 2684 kW @ 900 rpm (Propulsion Mode)
Shaft Generators:	4 x A10 1250 kW @ 720 rpm
CP Prop:	2 x Escher Wyss
Governor:	Woodward PGA with PMC Fuel Rack Transmitter and custom linkage
Pitch Actuator:	PMC Type 3310 PA-ER2
Remote Controls:	PMC Electronic Four Station Remote Control System with: Drop in propulsion control and instrumentation plates D-MaC Electronic Speed Control / Load Sharing Electronic Pitch Control / Load Control Type 5400 PCH-ES Electric Shaft Control Head Type 8421 UDC Universal Display and Control Panels

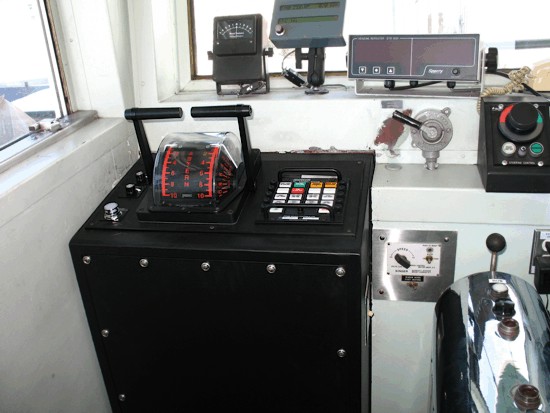

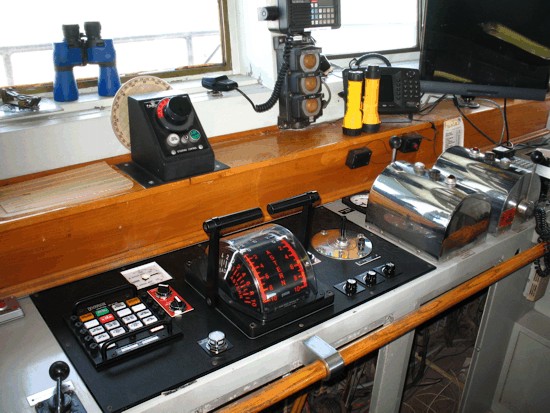

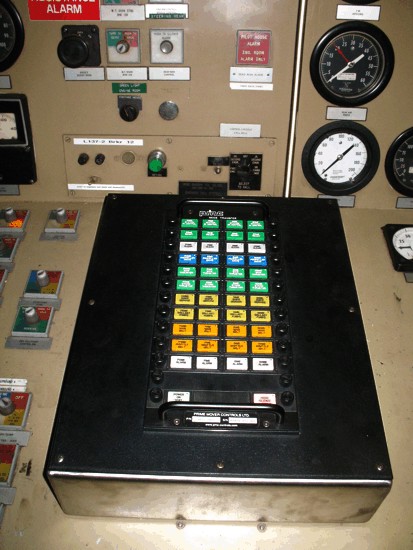

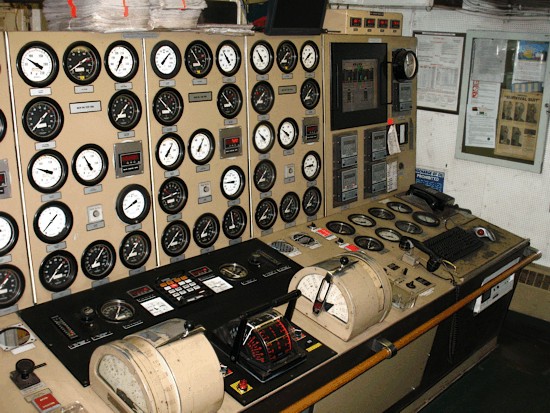

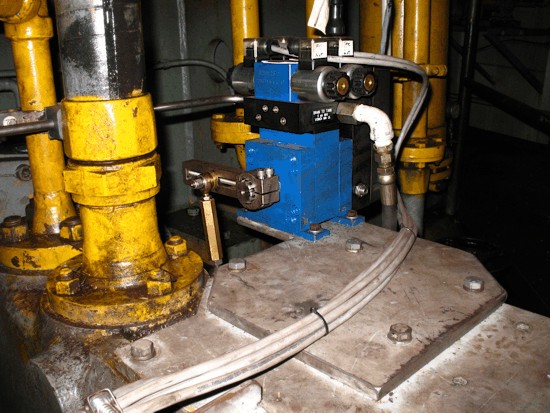

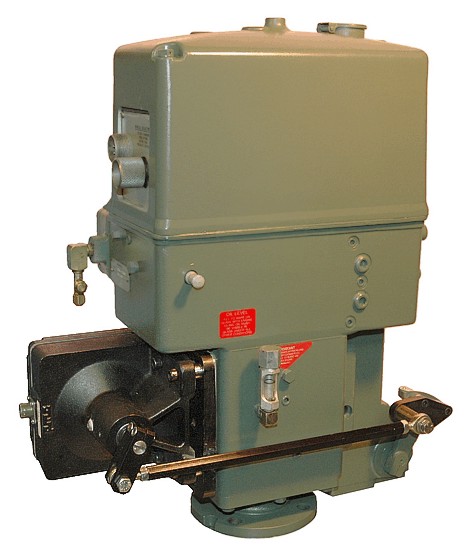

Pictures:	Engine Room control station Governor fitted with Fuel Rack Transmitter and linkage Pitch Actuator installation Port Wing control station Center Bridge control station PMC UDC panel custom configured for operation mode selection

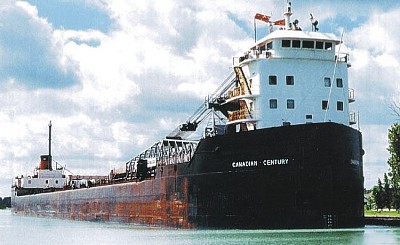

Canadian Century

LOA.:	222.5 m
Engine:	1 × B&W Type 574-VT2BF-160
Power:	5516 kW @ 115 rpm
CP Prop:	1 × KaMeWa
Governor:	Woodward 828 / PGA-EG
Pitch Actuator:	PMC Custom Actuator
Remote Controls:	PMC Electronic Two Station Remote Control System with: Drop in propulsion control and instrumentation plates D-MaC Electronic Speed Control Electronic Pitch Control / Load Control Type 5400 PCH-ES Electric Shaft Control Head Type 5402-2000 series PCH-V-ES Electric Shaft Control Head with pneumatic output

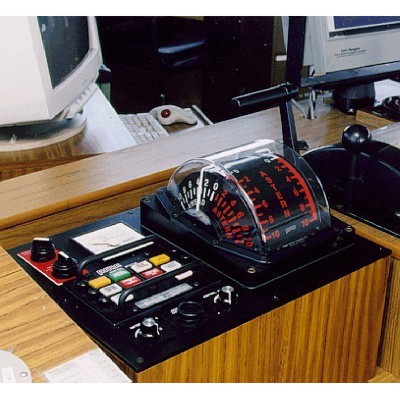

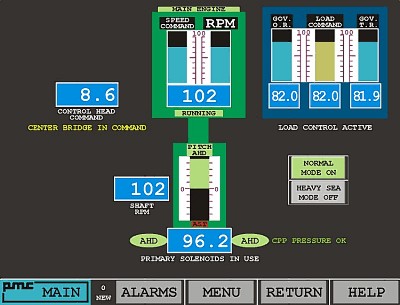

Pictures:	PMC propulsion control station in Canadian Century engine control room

Canadian Venture

LOA.:	222.5 m
Engine:	4 × Fairbanks Morse Opposed Piston
Power:	4 × 1491 kW @ 750 rpm
CP Prop:	1 × KaMeWa 4 Blade
Governor:	Woodward 828 / UG
Pitch Actuator:	PMC Type 3310 PA-ER2
Remote Controls:	PMC Electronic Two Station Remote Control System with: Drop in propulsion control and instrumentation plates D-MaC Electronic Speed Control / Load Sharing Electronic Pitch Control / Load Control Type 5800 MCH-E Electric Control Heads Engine Management for Propulsion

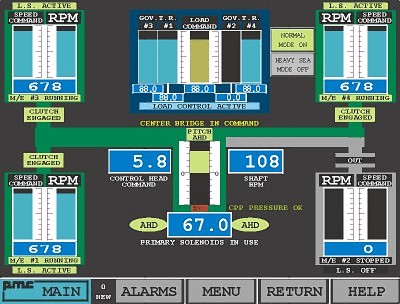

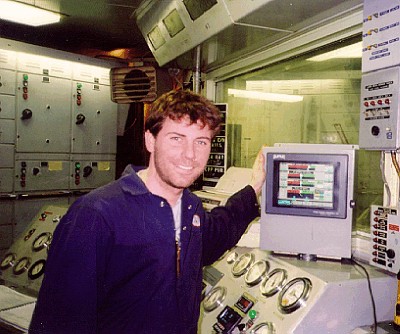

Pictures:	D-MaC operator interface in Canadian Venture engine control room

Stephen B Roman¹
Canadian Miner²

LOA.:	149 m¹222.5 m²
Engine:	2 × 10 Cylinder Fairbanks Morse Opposed Piston¹ 2 × 8 Cylinder Fairbanks Morse Opposed Piston¹4 × 8 Cylinder Fairbanks Morse Opposed Piston²
Power:	2 × 1242 kW @ 750 rpm 2 × 994 kW @ 750 rpm¹ 4 × 1491 kW @ 750 rpm²
CP Prop:	1 × KaMeWa
Governor:	Woodward 828 / UGA
Pitch Actuator:	PMC Type 3310 PA-ER2
Remote Controls:	PMC Electronic Four Station Remote Control System with: Drop in propulsion control and instrumentation plates D-MaC Electronic Speed Control / Load Sharing Electronic Pitch Control / Load Control Electric Control Heads Engine Management for Propulsion
Alarms:	PMC Distributed Control and Monitoring System (Omni Chief)¹

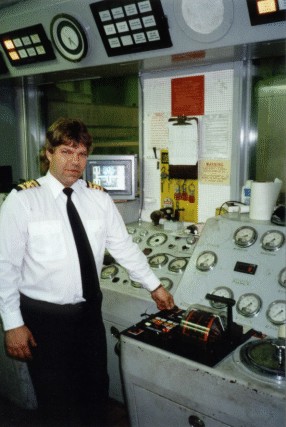

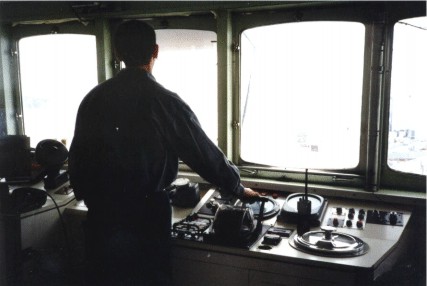

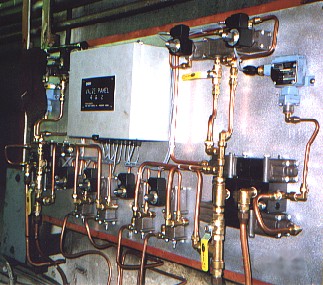

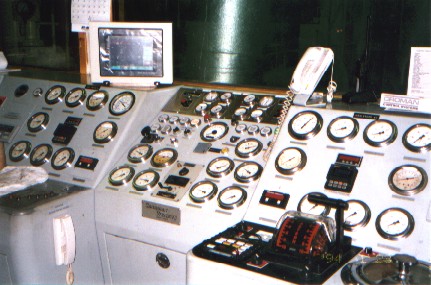

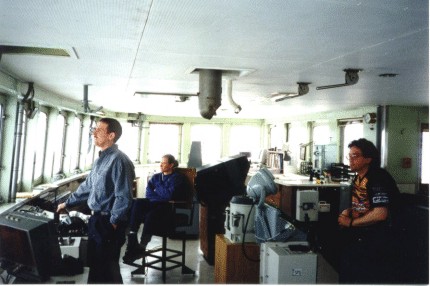

Pictures:	SB Roman bridge SB Roman center bridge station SB Roman engine control room station Skipper and Chief at the stern of the SB Roman Canadian Miner engine control room console Canadian Miner engine start/stop and clutch soft engage control

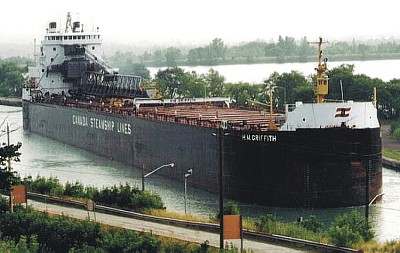

HM Griffith¹ CSL Niagara¹ CSL Nanticoke² CSL Laurentian¹Louis R Desmarais¹

LOA.:	222.5 m
Engine:	2 × Crossley Pielstick 10PC2V
Power:	2 × 3020 kW @ 430 rpm¹ 2 × 1957 kW @ 520 rpm²
CP Prop:	1 × KaMeWa
Governor:	Woodward 828 / PGEG
Pitch Actuator:	PMC Type 3310 PA-ER2
Remote Controls:	PMC Electronic Two Station Remote Control System with: Drop in propulsion control and instrumentation plates D-MaC Electronic Speed Control / Load Sharing Electronic Pitch Control / Load Control Type 5400 PCH Electric Shaft Control Heads

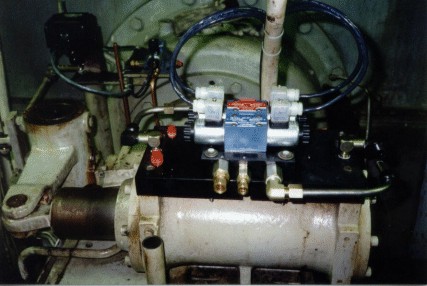

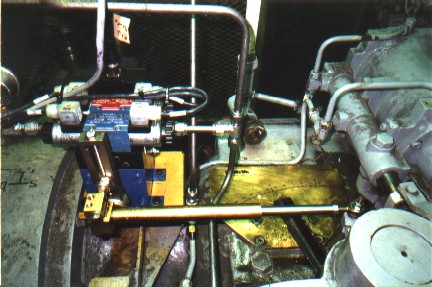

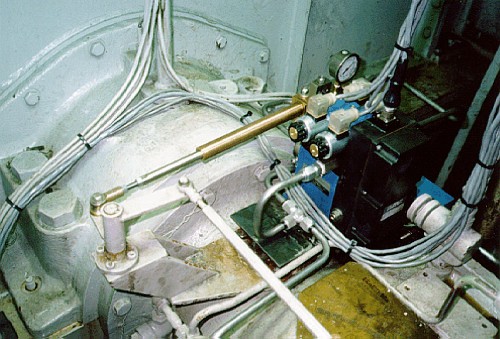

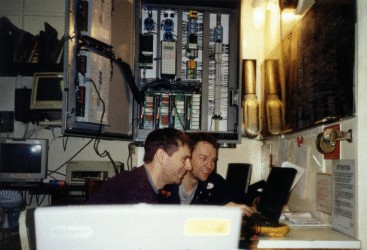

Pictures:	Griffith pitch actuator installation Nanticoke commissioning team Nanticoke pitch actuator Laurentian pitch actuator installation Louis R Desmarais unloading


Roger Blough

LOA.:	261.5 m
Engine:	2 × Pielstick (Coltec) PC-2
Power:	2 × 5294 kW @ 520 rpm
CP Prop:	1 × Bird Johnson
Governor:	Woodward PGA
Pitch Actuator:	PMC Type 3310 PA-ER2
Remote Controls:	PMC Electronic Two Station Remote Control System with: Drop in propulsion control and instrumentation plates D-MaC Electronic Speed Control / Load Sharing with I/P to pneumatic PGA governor. Electronic Pitch Control / Load Control Type 5040 MCH-ES Electric Shaft Control Heads

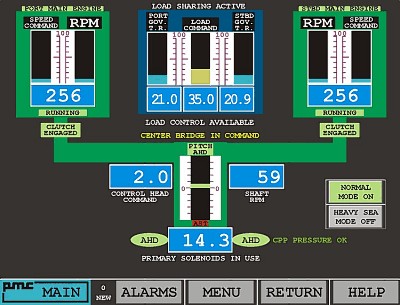

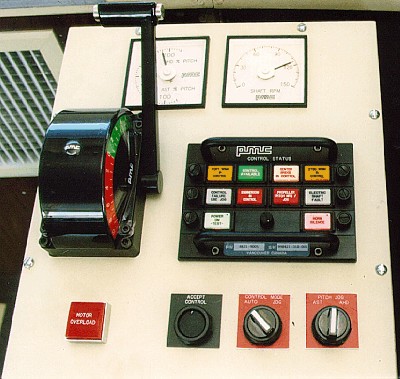

Pictures:	Roger Blough propulsion control station in pilot house


Algosteel¹ Algomarine^{1, 2}Algocape¹Gordon C Leitch¹ Frontenac

LOA.:	222.5 m
Engine:	1 × Sulzer 6 Cylinder RD76
Power:	7060 kW @ 120 rpm
CP Prop:	1 × KaMeWa
Governor:	Woodward 828 / PGEG 58
Pitch Actuator:	PMC Type 3310-2000 PA-EL2
Remote Controls:	PMC Electronic Two Station Remote Control System with: Drop in propulsion control and instrumentation plates D-MaC Electronic Speed Control Electronic Pitch Control / Load Control Electric Shaft Control Heads Type 8202-1000 Compact Engine Order Telegraph¹
Alarms:	Type 8001 Alarm Annunciators²

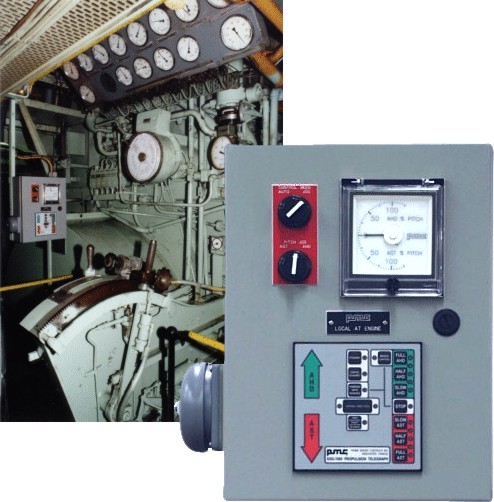

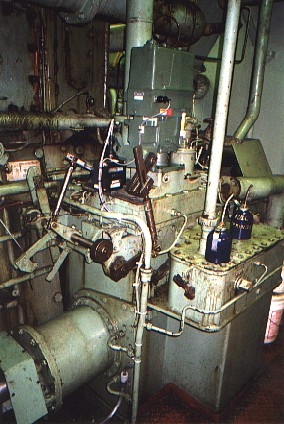

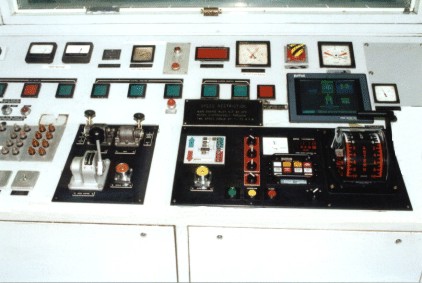

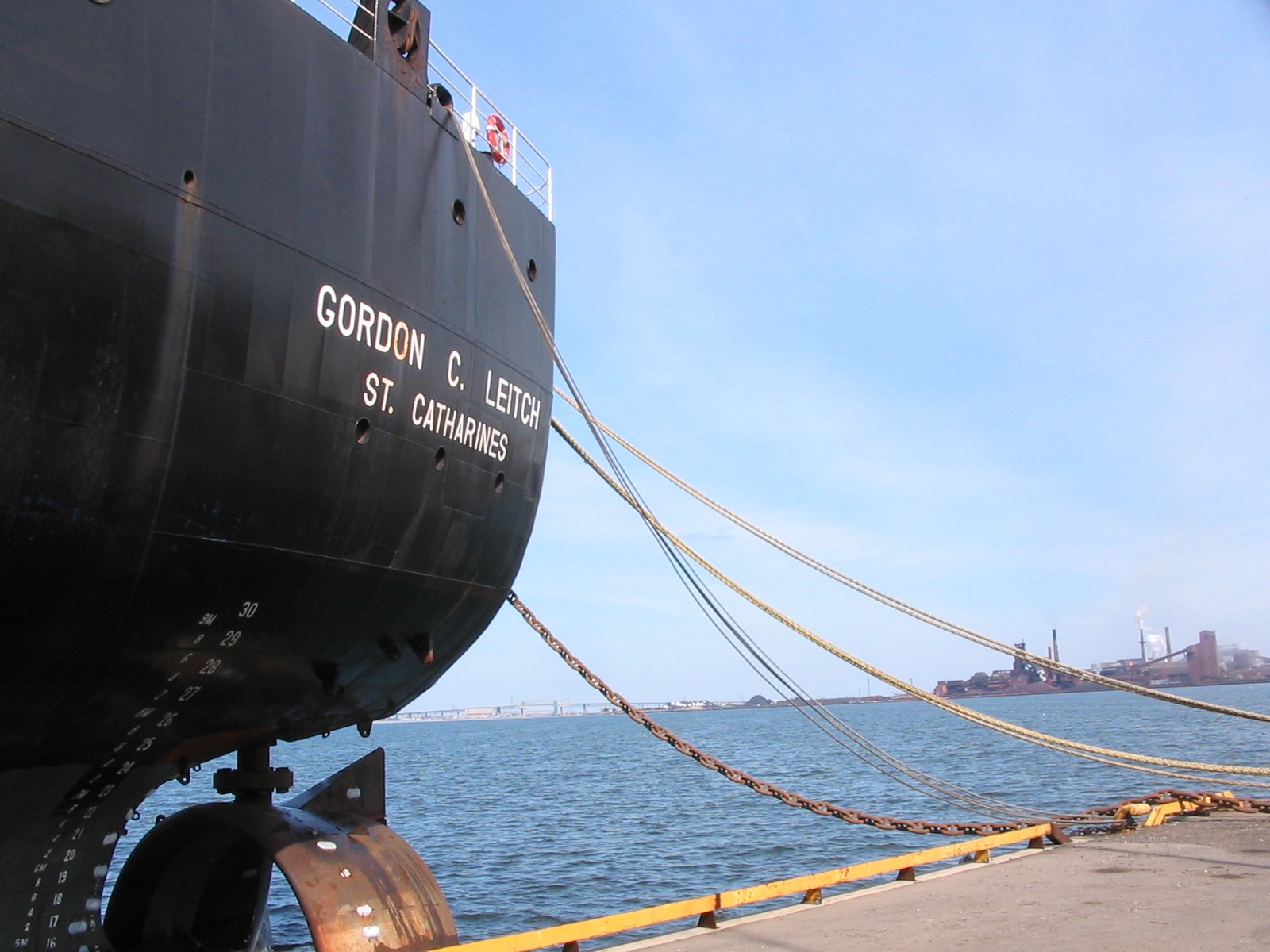

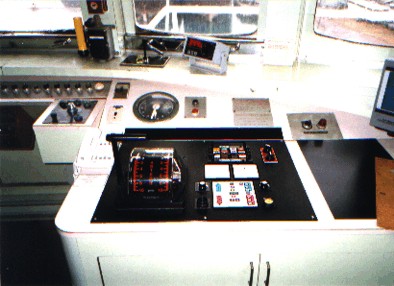

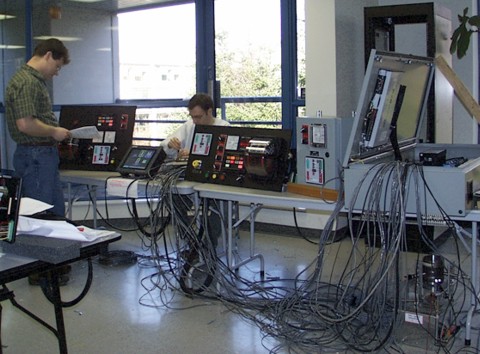

Pictures:	Algosteel drop in control plate installation Algomarine control linkages Algosteel local at engine telegraph installation Algomarine system testing before shipment Algomarine wing console Gordon C Leitch stern


Tadoussac

LOA.:	222.5 m
Engine:	1 × Sulzer 6 Cylinder RD76
Power:	7157 kW @ 120 rpm
CP Prop:	1 × KaMeWa
Governor:	Woodward 828 / PGEG 58
Pitch Actuator:	PMC Type 3310-2000 PA-EL2
Remote Controls:	PMC Electronic Two Station Remote Control System with: Drop in propulsion control and instrumentation plates D-MaC Electronic Speed Control Electronic Pitch Control / Load Control Electric Shaft Control Heads Engine Order Telegraph

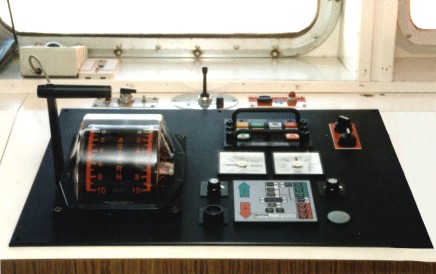

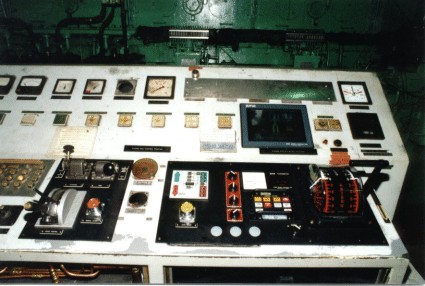

Pictures:	Tadoussac bridge plate Cuyahoga engine Control Room plate during installation


Cuyahoga

LOA.:	236 m
Engine:	1 × Caterpillar 3608
Power:	2300 kW @ 900 rpm
CP Prop:	1 × KaMeWa
Governor:	Woodward 828
Remote Controls:	PMC Electronic Four Station Remote Control System with: Drop in propulsion control and instrumentation plates D-MaC Electronic Speed Control Electronic Pitch Control / Load Control Type 5400 PCH-ES Electric Shaft Control Head

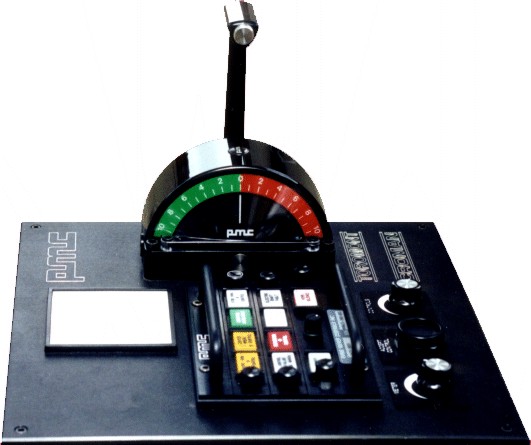

Pictures:	Cuyahoga drop in propulsion control and instrumentation plate


Edwin H Gott¹ Edgar B Speer²

LOA.:	306 m
Engine:	2 × Enterprise¹2 × Peilstick V-18²
Power:	2 x 7271 kW @ 450 rpm¹2 x 7181 kW @ 520 rpm²
CP Prop:	2 × KaMeWa / Bird Johnson
Governor	PGA
Remote Controls:	PMC Electronic Four Station Remote Control System with: Drop in propulsion control and instrumentation plates D-MaC Electronic Speed Control Electronic Pitch Control / Load Control Type 5400 PCH-ES Electric Shaft Control Head
Alarms:	PMC Integrated Machinery, Alarm and Control System (IMACS)²

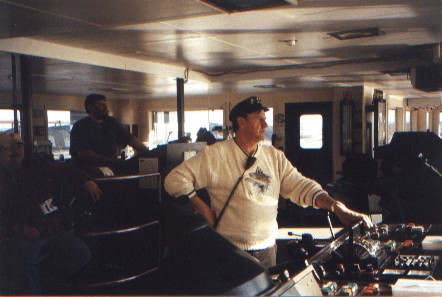

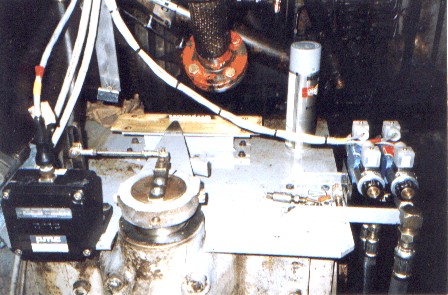

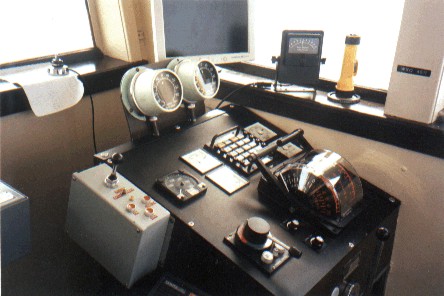

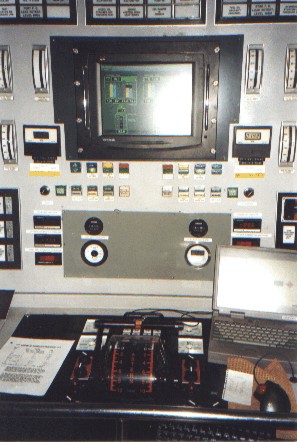

Pictures:	Captain at the bridge of the Edwin H Gott Edwin H Gott engine room station Edwin H Gott wing station Edwin H Gott pitch feedback and control Edgar B Speer from the air


Canadian Olympic¹ Canadian Progress²

LOA.:	222.5 m
Engine:	2 × MAN 8 Cylinder¹ 2 x 12 Cylinder²
Power:	2 x 3729 kW @ 450 rpm¹ 2 x 3132 kW @ 900 rpm²
CP Prop:	1 × KaMeWa
Governor:	Woodward 828
Remote Controls:	PMC Electronic Four¹ (Two²) Station Remote Control System with: Drop in propulsion control and instrumentation plates D-MaC Electronic Speed Control / Load Sharing Electronic Pitch Control / Load Control Type 5400 PCH-ES Electric Shaft Control Heads Engine Management Safety System¹

Alarms:	PMC Integrated Machinery, Alarm and Control System (IMACS) with two workstations¹

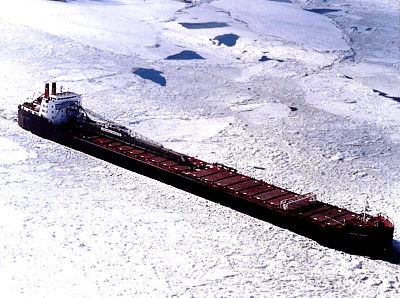

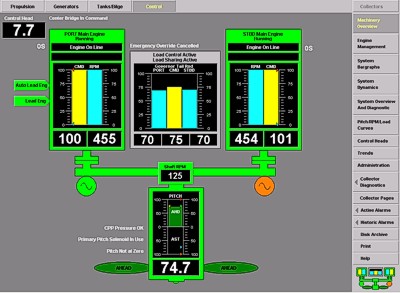

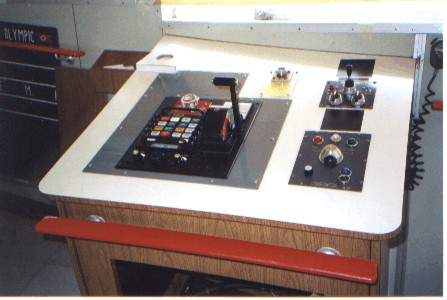

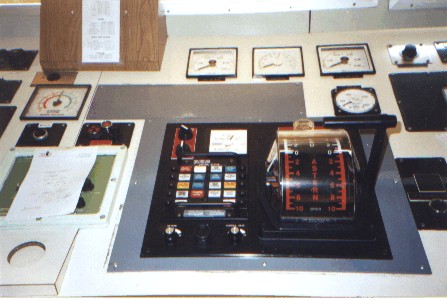

Pictures:	Canadian Olympic center bridge station Canadian Olympic wing station Canadian Progress breaking through ice
