Distributed Control and Monitoring System

Series 8003-1000

The is a flexible system with many configurations. The basic unit can function as a stand alone alarm annunciator. It is expandable and designed for seamless integration with the PMC IMACS graphic user interface.

This overall system provides reliable hardware and software to suit project specific requirements such as graphics, automation, safety systems, trending and health monitoring.

Features

• Any combination of analog and digital inputs
• Optical isolation protection for each individual input
• Industry standard inputs, see specifications
• Disable / enable points based on machinery status
• Virtual points based on calculations and logic functions

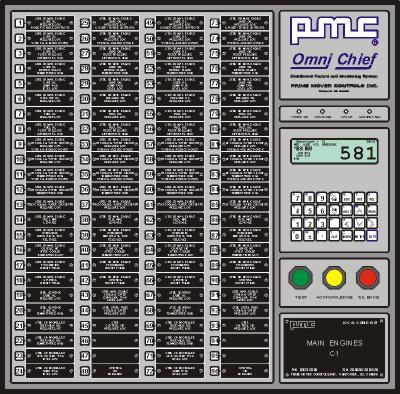

• 96 point indication panel with engraved ID tags
• Graphic LCD for additional information and setup
• High speed network connection for additional computer graphics, control and monitoring
• 28 key membrane keypad
• Menu driven programming
• Setup is password protected and stored in non-volatile memory
• DC to DC converters for enhanced noise immunity
• Relay output for unit fault (communication, CPU, power and ground fault)
• Self diagnostic
• Removable connectors throughout for easy maintenance

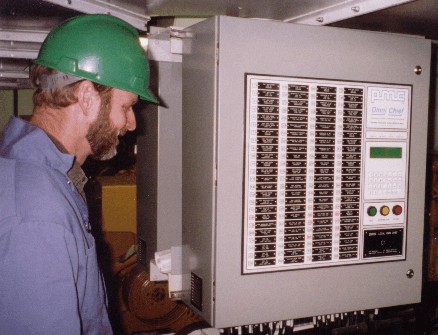

Typical Installations
